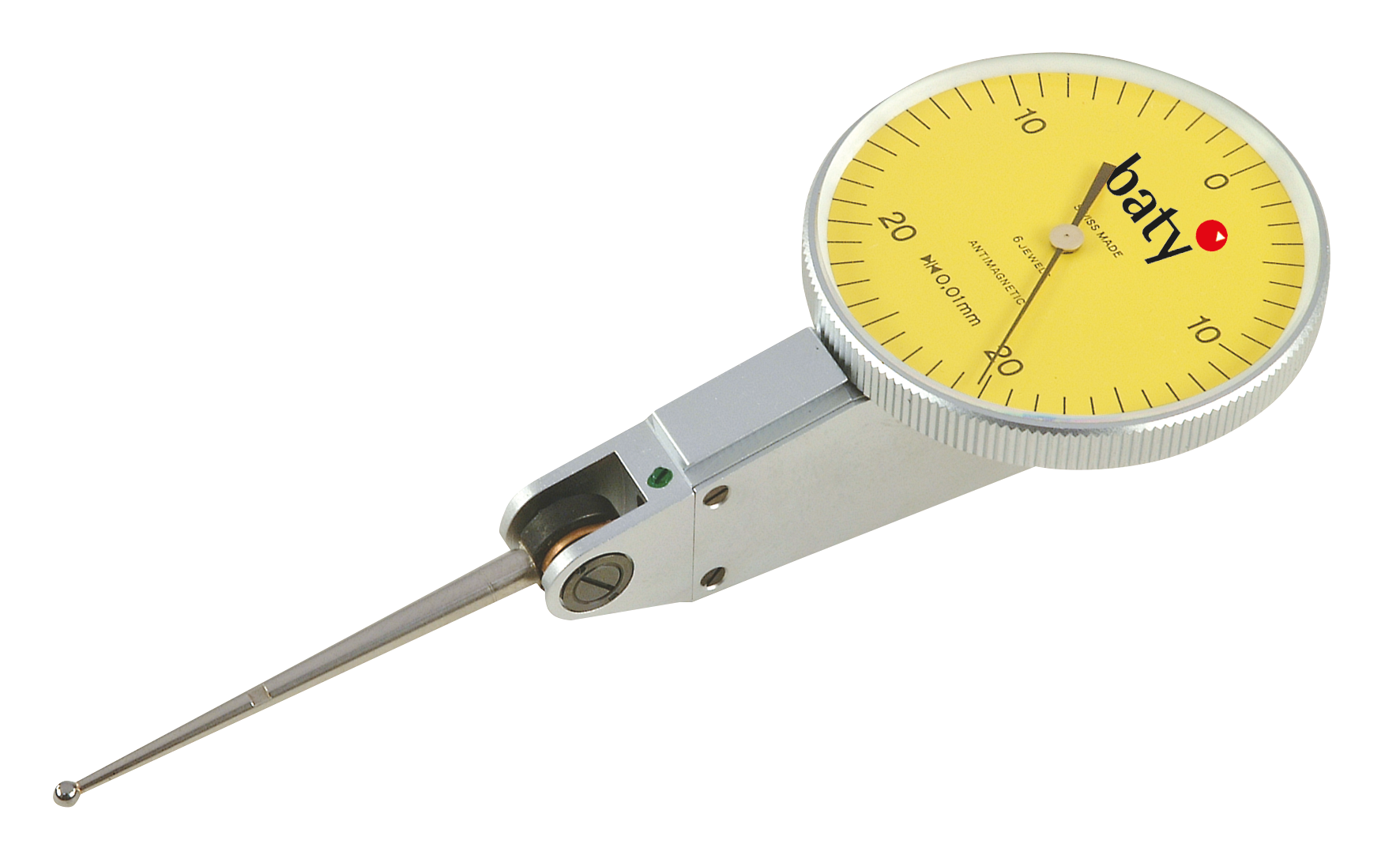

HL 3
HL-3
HL 4
HL-4

Baty Lever Type Dial Test Indicator - Metric

The Baty HL series of lever-type dial test indicators are top quality, Swiss-made precision instruments.
Low inertia jewelled movements and rugged construction make them suitable for universal applications in the workshop and inspection departments.

Product Description

The Baty HL series of lever-type dial test indicators are top quality, Swiss-made precision instruments.
Low inertia jewelled movements and rugged construction make them suitable for universal applications in the workshop and inspection departments.

Baty HL indicators are supplied with:

  • 2mm diameter contact point – fitted
  • Contact point key
  • Dovetail stem 8mm/H7
  • Tough plastic case

    Note: Models HL3 and HL7 are not supplied with additional contact points.

Features

  • High sensitivity, repeatability and accuracy
  • Conforms to DIN 2270
  • Anti-magnetic
  • Automatic reverse action stylus – hand always rotates clockwise
  • Adjustable bezel for zeroing
  • Precision ball bearing mounted, interchangeable carbide point swivels through 240º
  • M1.4 thread
HL-1 0.8 12 0.01 0-40-0 27 POA
HL-2 0.8 12 0.01 0-40-0 37 POA
HL-3 0.5 36 0.01 0-25-0 37 POA
HL-4 0.2 12 0.002 0-100-0 37 POA
