Moore & Wright Dial Indicator 401 Series - With Lug Back

MW401 01
MW401-01
MW401 02
MW401-02
MW401 05
MW401-05

Moore & Wright Dial Indicator 401 Series - With Lug Back

The Moore & Wright 401 series dial indicator meets Standard: ANSI B89.1.10

Product Description

Featuring an aluminium body and a tungsten carbide contact point, the Moore & Wright 401 series dial indicator is supplied with a lug back and an adjustable bezel with stop screw.

Features

  • Standard: ANSI B89.1.10
  • Aluminium body
  • With tungsten carbide contact point
  • Adjustable bezel with stop screw
  • Tolerance indicators
  • Lug back (flat back is optional)
MW401-01 Lug back 0-0.5" ±0.02 0.001" 58mm 3/8" POA
MW401-02 Lug back 0-1.0" ±0.035 0.001" 58mm 3/8" POA
MW401-05 Lug back 0-25mm ±0.035 0.01mm 60mm 8mm POA

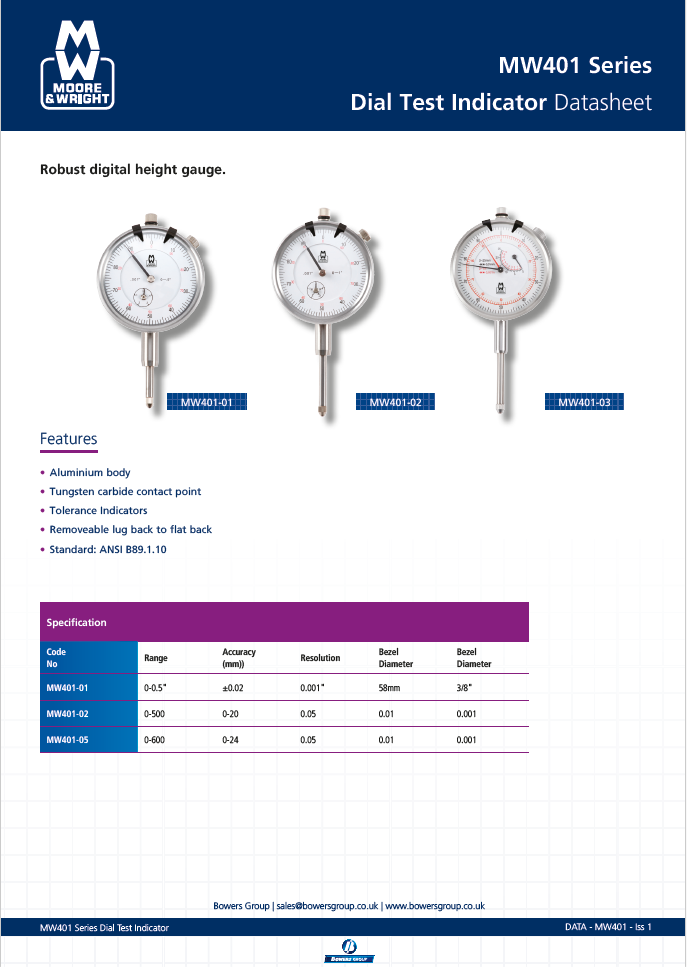

Product Downloads
