Reprorubber - Metrology Grade Casting Material

Reprorubber - Metrology Grade Casting Material

Reprorubber offers numerous advantages over other hard-copy replicating materials:

  • Quick casting – zero shrinkage
  • No release agent required – will not stick to part
  • Surface finish replication is exact with excellent optical properties easily checked on an optical comparator or video inspection machine
  • Copies can be re-copied from original mould
  • Replicas are permanent – will not leach out, ooze out, or gas out
  • No more 16 hour cure time as with RTV silicones
  • More accurate than all other RTV compounds

Product Description

Applications - You can take impressions of:

  • All metals
  • Non metals
  • Paper or cardboard items
  • Wood, marble etc
  • All plastics
  • Rubber
  • Ceramic and glass items

Other Uses Include:

  • Prototypes of rubber type components such as gaskets, washers, etc
  • Making joints where flexibility is required
  • As a mask for high temperature plasma spray of metallic coatings
  • Fixturing where semi-rigid structure is desired

Features

Original Reprorubber® Thin Pour - Final Colour: LIGHT GREEN

For internal-shape applications where a thin pour will completely fill the cavity without voids. A complete replica casting is quickly formed.

  • Manipulation time is approx 2 minutes and cure time is approximately 10 minutes
  • Start to finish: approximately 12 minutes
  • Kits include graduated mixing cups, wooden spatulas and instructions

Original Reprorubber® Quick Setting Putty - Final Colour: LIGHT BLUE

  • Roll two equal-sized balls of catalyst putty and base putty and simply knead them together like dough. Excellent for external shapes.
  • Simply spread over master pushing down with fingers and wait for cure 8-10minutes. Manipulation time is 1 to 2 minutes. Therefore 12 minutes start to finish.
  • You can also cast internal shapes and cavities but some pressure should be applied such as a weighted object on top.

New Reprorubber® Orange – Medium Body Pre-filled Cartridges - Final Colour: ORANGE

New Medium Body (Medium Viscosity – Medium Durometer) casting material ideal for both internal and external applications. Disposable pre-filled dual barrel 50ml cartridges can quickly dispense casting material utilising the REPRO-MIX II Gun System.

  • Mix time: 15-30 seconds and cure time is 5-6 minutes
  • Start to finish: 6-8 minutes

Quick Dispense Cartridge System Kit

Contains everything you need to easily create highly accurate, zero shrinkage replicas. Each kit includes 1 each:

  • Repro-Mix II reusable dispensing gun
  • 6 each 50ml pre-filled Reprorubber disposable cartridges
  • 15 disposable mixing nozzles
  • 2 micro injector snap-on nozzles
  • Deluxe fitted carrying case

Physical advantages over the hard-copy replicas:

  • Replica is easy to remove – even if they are in under cuts or grooves
  • Cross-sectioning of replica is easily accomplished with a knife or razor
  • It can then be checked on an optical comparator or microscope
  • Surface finish replication is exact with excellent optical properties
  • Reprorubber copies can be re-copied (copy from a ‘female mould’ yields a male-shaped replica)
  • Replicas are permanent – will not leach or ooze out nor gas out
  • No more 16 hour cure time as with RTV silicones
  • More accurate than all other RTV compounds
  • Reprorubber putty will withstand up to 600°F (or more)
16300 Reprorubber Thin Pour (Green) Quick Dispense Cartridge System Kit Complete POA
16305 Reprorubber Orange (Medium Body) Quick Dispense Cartridge System Kit Complete POA
16309 Reprorubber Combo Kit Quick Dispense Cartridge System Kit, Includes 3 each Thin Pour & 3 each Orange POA
16116 Thin Pour 130ml Mix Your Own Trial Kit - Final Colour: Light Green POA
16135 Thin Pour 380ml Mix Your Own Kit - Final Colour: Light Green POA
16129 220ml Trial Quick Setting Putty Mix Your Own Kit - Final Colour: Light Blue POA
16130 1 3⁄4 lb (520ml) Introductory Mix Your Own Kit - Final Colour: Light Blue 1 3⁄4 lb (520ml) Introductory Mix Your Own Kit - Final Colour: Light Blue POA
16131 7lb (2150ml) Economy Mix Your Own Kit - Final Colour: Light Blue POA
16301 Reprorubber Thin Pour (Green) 50ml Cartridge, 1 each POA
16302 Reprorubber Thin Pour (Green) 50ml Cartridges, 6 pack POA

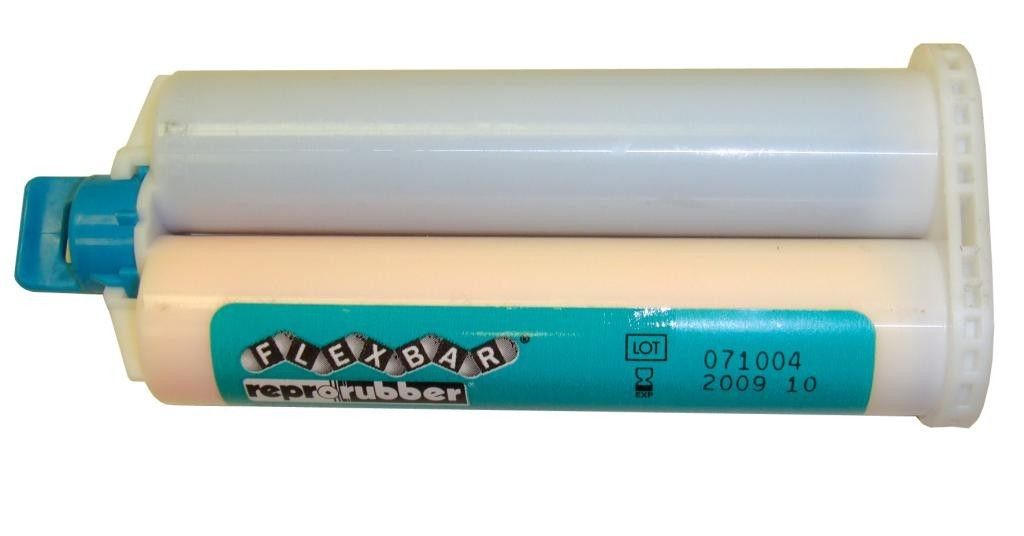

16306 Reprorubber Orange (Medium Body) 50ml Cartridge, 1 each POA
16307 Reprorubber Orange (Medium Body) 50ml Cartridges, 6 pack POA
16311 Repro-Mix II Dispensing Gun (reusable) POA
16313 Repro-Mix II Helix Mixing Nozzles, 15 Pack POA
16316 Repro-Mix II Helix Mixing Nozzles, 100 Pack POA
16315 Quick Dispense Cartridge System Fitted Case (without contents) POA
16314 Micro Injector Snap-On Nozzle, Pack of 15 POA
