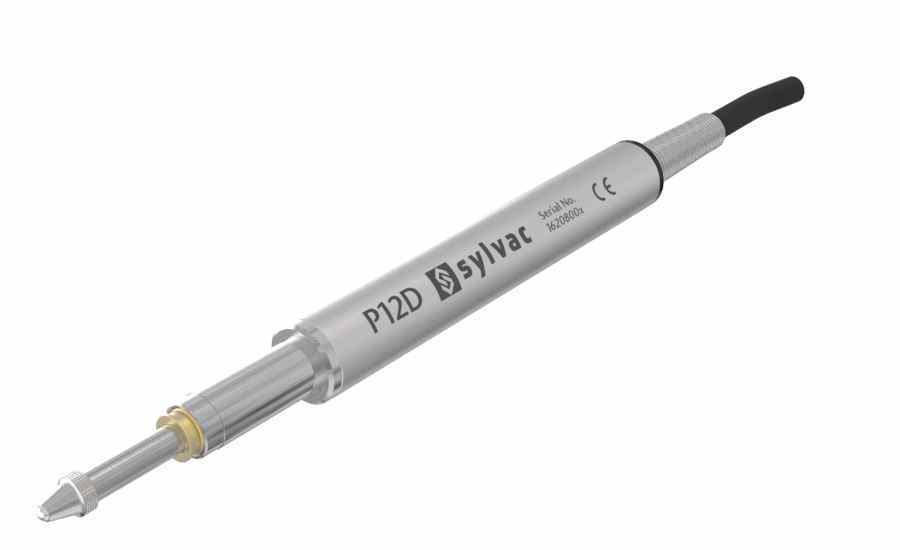

The Sylvac P12D is a Swiss-made absolute digital measuring probe with an inductive design and direct digital output.
It offers a generous 12.7 mm measuring range, ultra-fine resolution down to 0.01 µm, and doesn’t require pairing thanks to its integrated error-correction system. Built for industrial durability, it features a robust ball-bearing guide and stainless-steel body, making it suited for high-precision measurements in demanding environments.
The P12D from Sylvac is a high-precision, absolute digital probe designed for accurate distance and form‐deviation measurements.
Using a patented dual measuring system (inductive + capacitive), it ensures exceptional accuracy across its full 12.7 mm range. Depending on configuration, you can select between a standard 0.1 µm resolution or a high-resolution 0.01 µm option. Its absolute measuring architecture features built-in electronic error correction, eliminating the need for re-pairing with measurement units.
The probe is designed for longevity, with a stainless-steel body (Ø 12 mm), an 8 h6 fixing diameter, and a ball-bearing guide rated for at least 100 million cycles (30 million under radial load). Outputs include USB or M8 connectors, and data can be read at up to 100 measurements per second.
| 30-801-1012 | Digital probe P12D high resolution, with USB connector | POA |
| 30-801-1018 | Digital probe P12D high resolution, constant force, with USB connector | POA |
| 30-801-1212 | Digital probe P12D high resolution, with M8 connector | POA |
| 30-801-1218 | Digital probe P12D M8 high résolution | POA |
