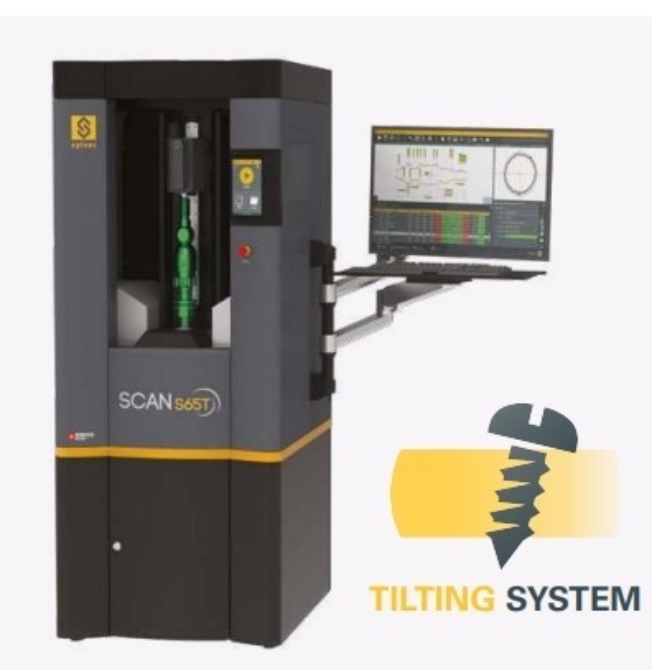

Exclusive Tilt system

FOR MORE COMPREHENSIVE THREADMEASUREMENTS

The Sylvac-Scan machines equipped with the additional tilt ‘T’ axis (S25T/S65T) offer the ultimate measurement solution for threaded parts.

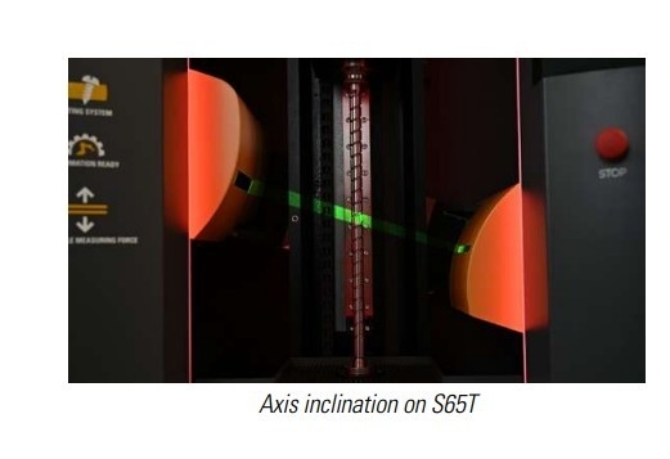

Thanks to our unique tilting optics, the thread can be scanned according to the helix angle, revealing elements of the thread which would otherwise be hidden. Sylvac-Scan offers true thread measurement.

TYPICAL MEASUREMENT REQUIREMENTS:

• Major diameter

• Minor diameter

• Pitch

• Pitch diameter

• Flank angles

• Root & Crest radius

• Taper angle

• Circularity

• Run-out

• Concentricity

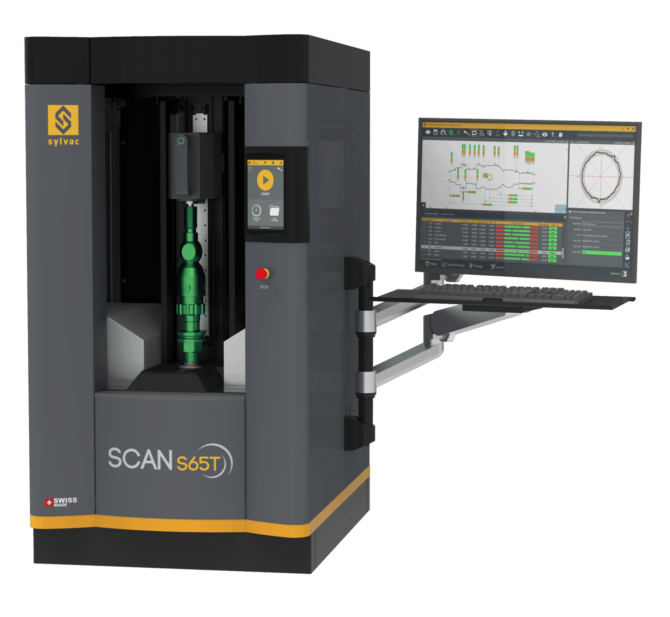

Sylvac Scan S65(T)

• Optical machine for cylindrical parts up to Ø65mm
• Integrated operator touch screen control panel
• integrated calibration master & temperature
sensors for environmental control
• Retractable roof for heavy parts loading
• Next generation of optical technology
• Reflex click technology
• Optional tilt axis for advanced thread measurement
• Advanced software features
• Fully equipped «Automation Ready»
• Motorized tailstock
• Quick release tooling
