Moore & Wright Dial Indicator 400 series

MW400 02
MW400-02
MW400 03
MW400-03
MW400 04
MW400-04
MW400 04
MW400-04
MW400 08
MW400-08

Moore & Wright Dial Indicator 400 series

The Moore & Wright 400 series dial indicator meets DIN 878 standards.

Product Description

Featuring a satin chromed body and a tungsten carbide contact point, the Moore & Wright 400 series dial indicator is shock proof with an adjustable bezel with stop screw.

Features

  • Standard: DIN 878
  • Satin-chromed body
  • With tungsten carbide contact point
  • With double dial indicator for measuring mm stroke
  • Shockproof
  • Micron versions are jewelled
  • Adjustable bezel with stop screw
  • Packed in foam box
MW400-01 Flat back 0-1 ±0.004 0.001 58mm POA
MW400-02 Lug back 0-1 ±0.004 0.001 58mm POA
MW400-03 Lug back and flat back 0-3 ±0.012 0.01 42mm POA
MW400-04 Lug back 0-5 ±0.014 0.01 42mm POA
MW400-05 Flat back 0-10 ±0.016 0.01 58mm POA

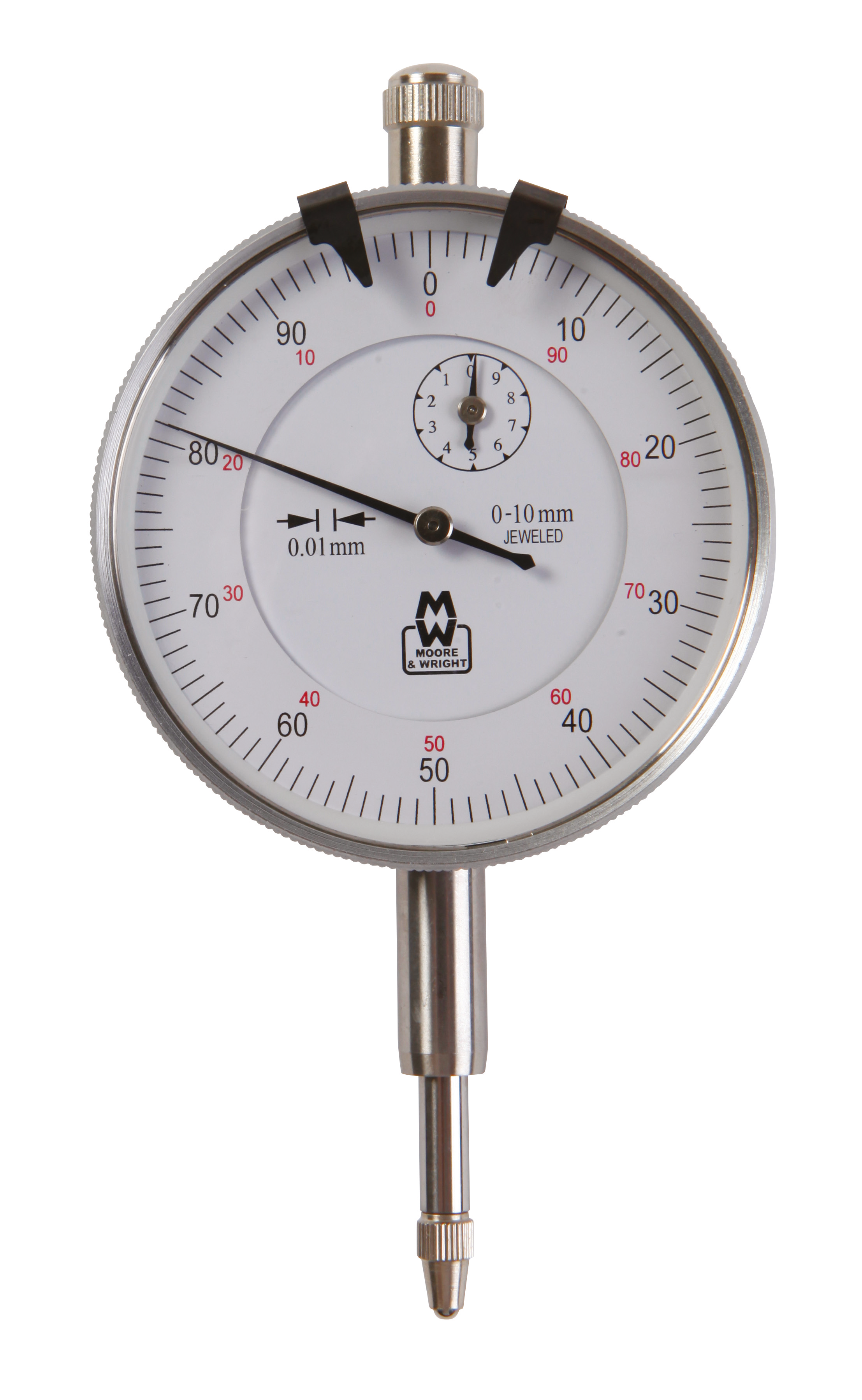

MW400-06 Lug back 0-10 ±0.016 0.01 58mm POA

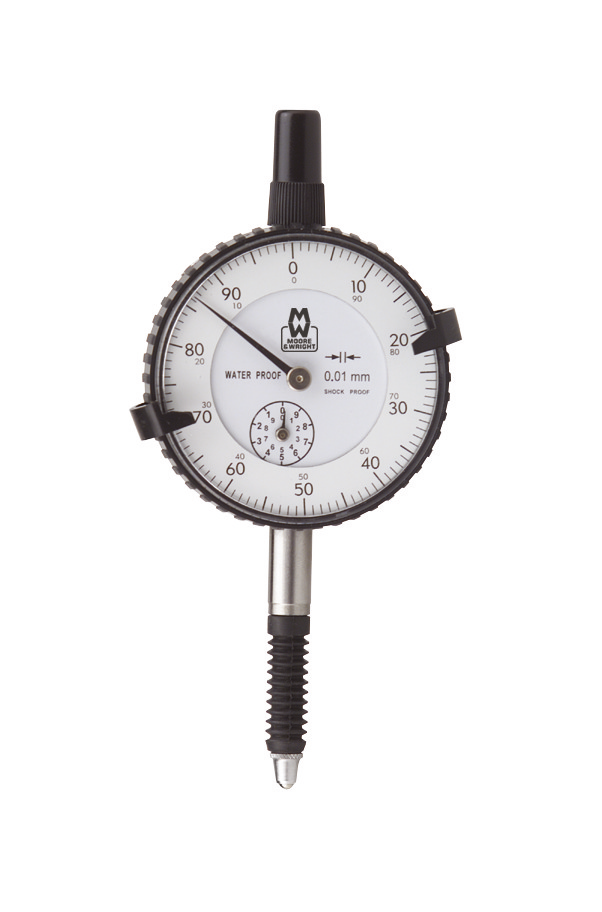

MW400-06B Waterproof (IP54) 0-10 ±0.02 0.01 54mm POA
MW400-08 Lug back 0-30 ±0.035 0.01 58mm POA

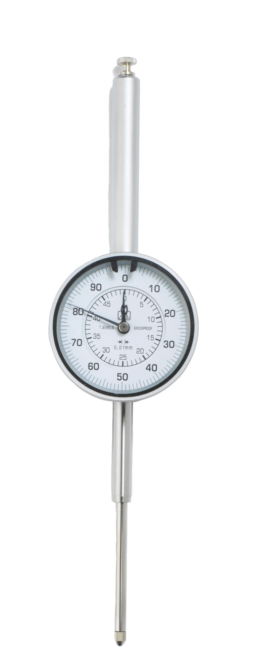

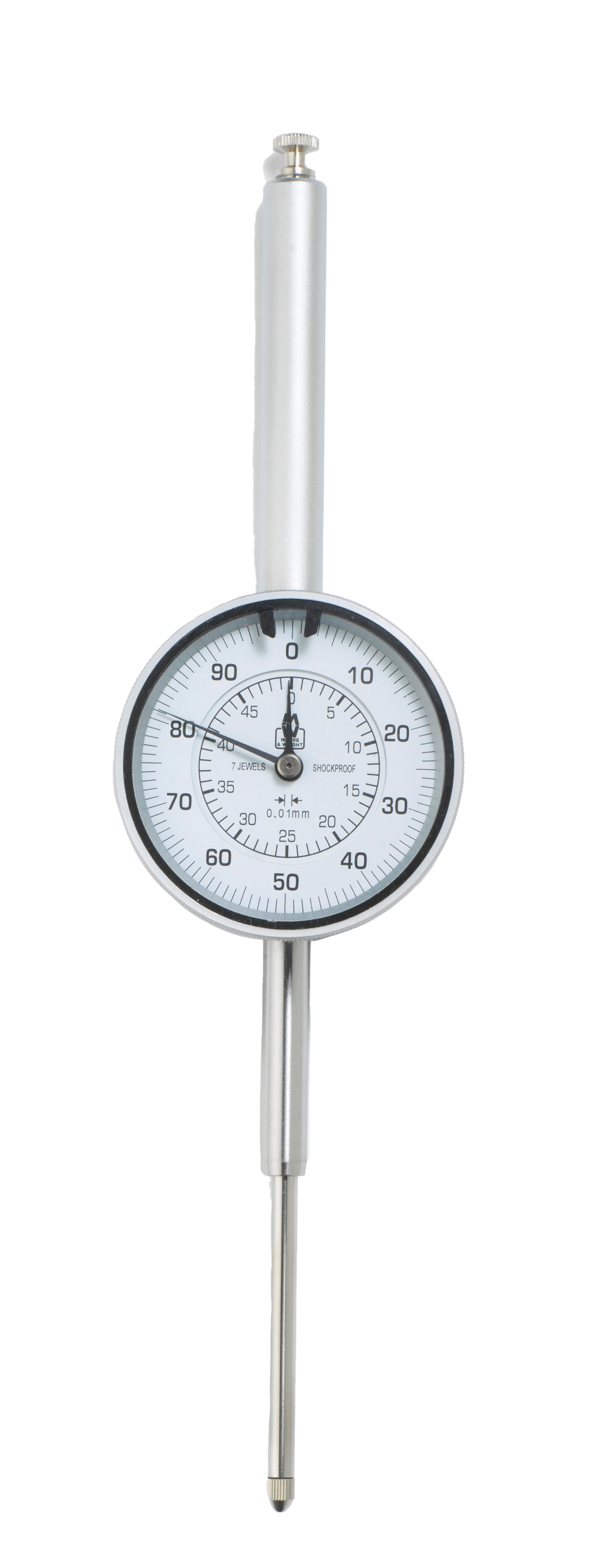

MW400-09 Lug back 0-50 ±0.04 0.01 58mm POA
