DIAVITE DH - 8 App

DIAVITE DH - 8 App

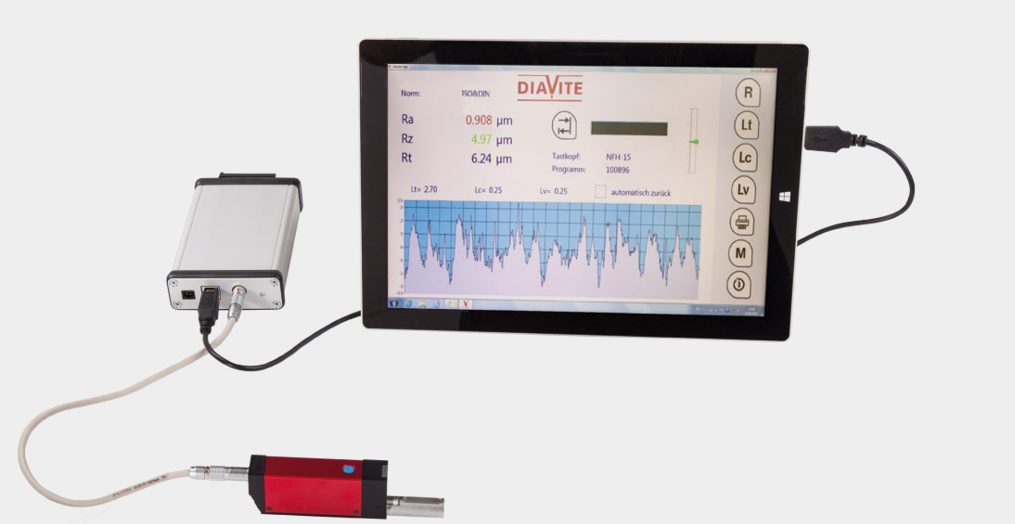

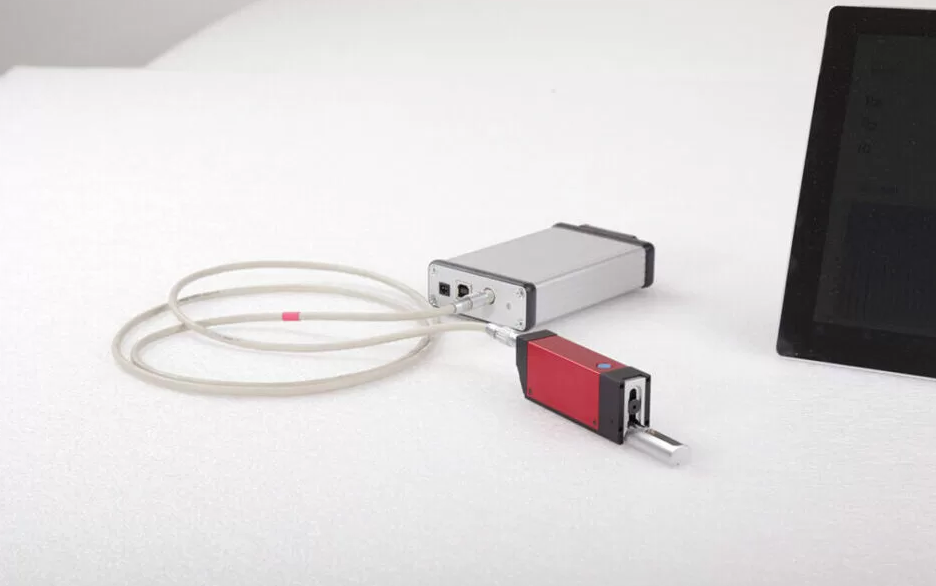

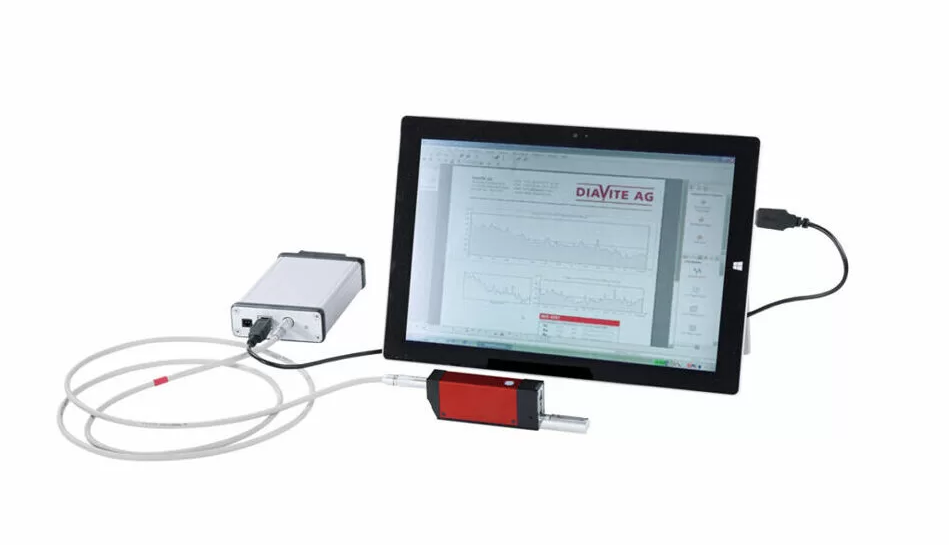

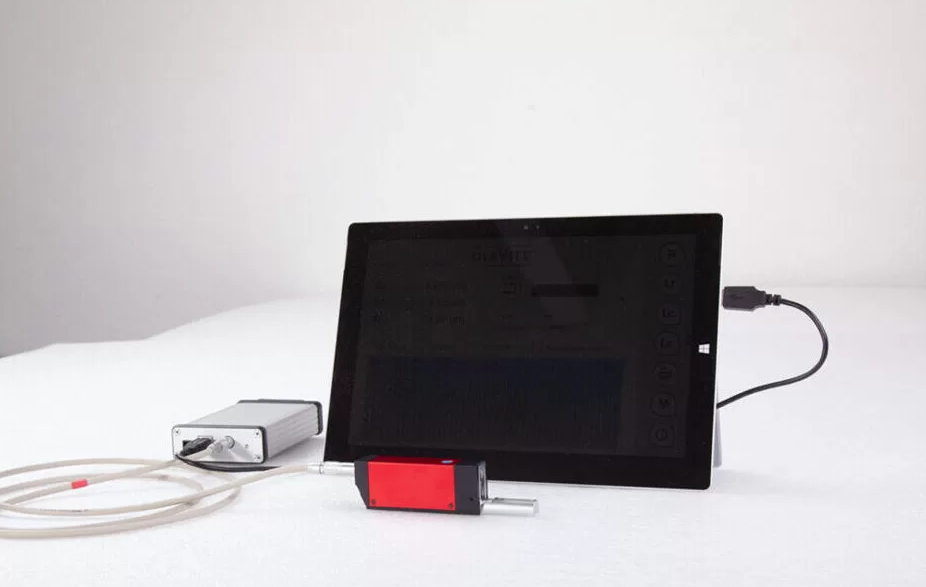

The DIAVITE DH-8/App can transform any computer into a roughness measuring instrument. The software is easy to install and can be connected to any PC or tablet.

It has a range of options available for data transfer, measurement storage and documentation.

Product Description

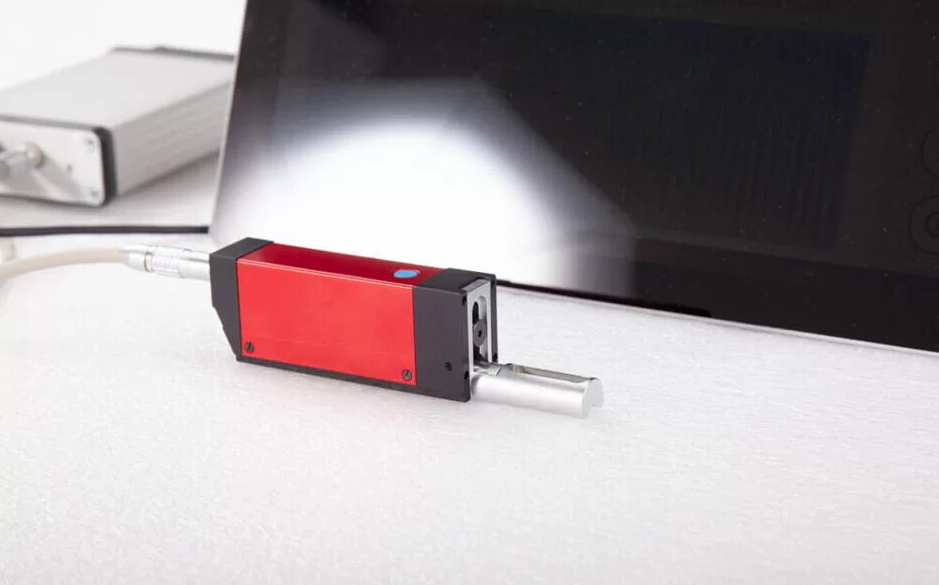

The DIAVITE DH-8/App is a great addition to measuring stations. Options of a VH motor unit for tracer with skid or VHF motor unit for tracers with and without skid.

Features

  • Easily connect via a USB cable
  • 5 measuring lengths, adjustable between 0.5 and 15.0 mm
  • Adjustable measurement speed
  • Calibration of up to 8 tracers
  • Tolerance display for exceeded measurement values
13-DH-8/APP/VHF Surface Roughness Meter DH-8/App/VHF Ra, Rq: 0 – 20,00 µm | 0 – 800 µin
All other measurement values: 0 – 350.0 μm | 0 – 1400 μin
USB port L245 x W130 x H78 mm POA
