Moore & Wright Video Microscope

Moore & Wright Video Microscope

The MWT-7100 is a Video Microscope for inspection, measurement and image capture with a 12-84X magnification range, 2 megapixel camera and 11.6" display. The dimmable LED ring light and customisable camera settings suit a wide range of inspection applications. Use the calibrated on-screen measurement tools to check dimensions without additional equipment. Save and view images and data locally, or export via USB or HDMI.

Product Description

Moore and Wright’s digital Video Microscope is a powerful inspection tool, enhanced with measurement capabilities and image capture. The 12-84X magnification range and 2 megapixel camera allow detailed viewing on areas as small as 2mm. The built-in 11.6” LCD display has a frame rate of 60fps for real-time part viewing with no visible lag. The dimmable LED ring light, automatic exposure and adjustable camera settings allow for optimised inspection for every application. Smooth handwheels to adjust focus and magnification, with internal memory for calibration at range of magnifications. Take on-screen measurements from feature tools; create lines, arcs and more in user-defined positions or use the automatic edge finding to snap features to part edges. Convenient internal storage for files with option to export via network port or USB, HDMI port included to connect an additional screen.

Features

  • Real time observation on inbuilt monitor, with photo capture and video recording
  • Overlay lines and shapes to measure distances, areas and angles, add text to images
  • Magnification 12x-84xObjective 0.75x-4.5x continuous zoom, objective zoom ratio 6:4:1
  • White balance and automatic exposure, gain, contrast and saturation control
  • Sensor ½” CMOS
  • Monitor 11.6” or HDMI output to alternate display
  • Resolution 1920x1080P (2 million) @60fps
  • Outputs HDMI, USB, Ethernet port
  • LED light source with brightness control
  • Power 100V to 240V, 50/60Hz converted to 12V supply

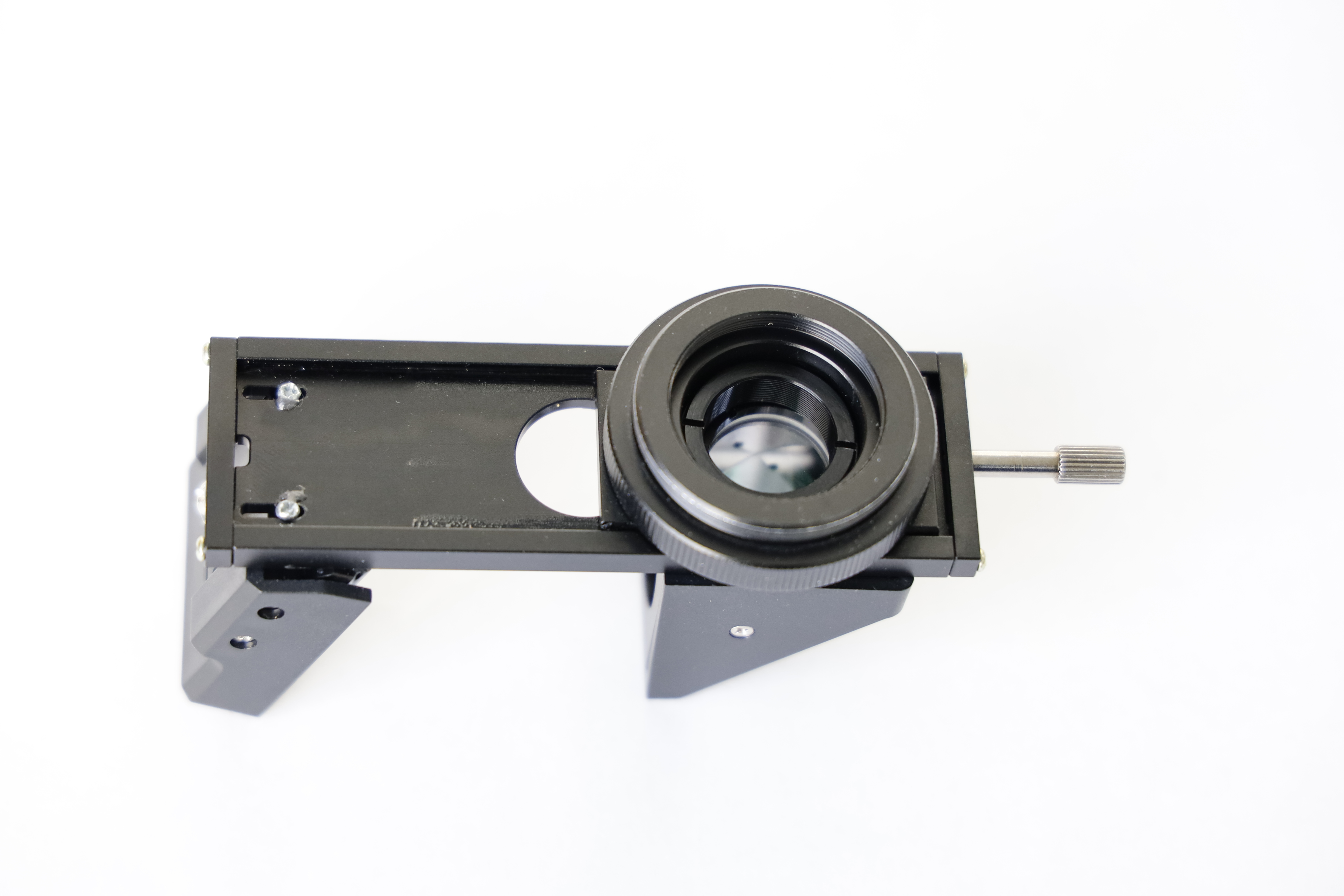

  • An optional attachment enables panning at 45º viewing angle and 360º rotation
MWT-7100 12x - 84x 1920x1080P (2 million) @60fps POA
