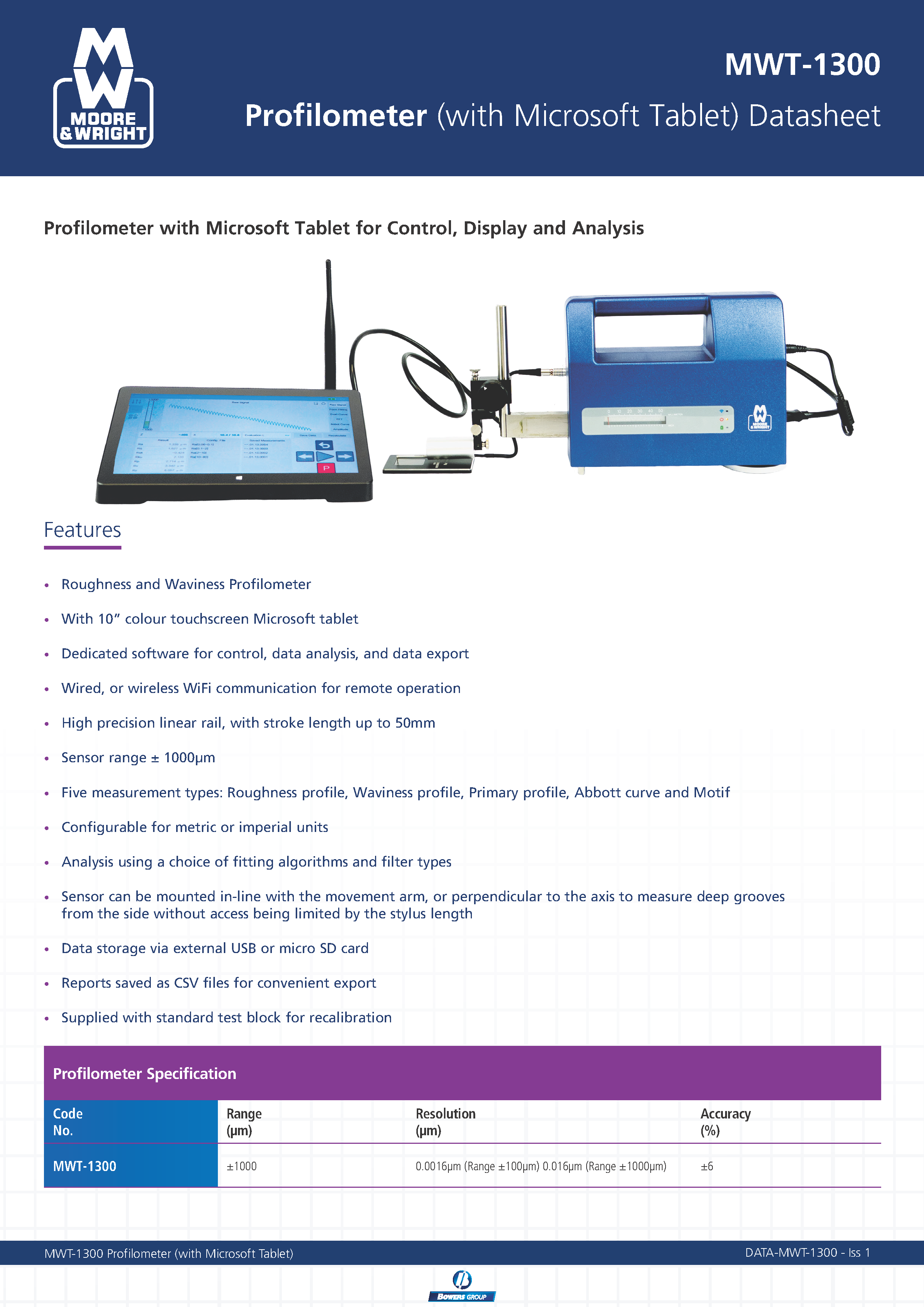

The MWT-1300 Profilometer is Moore and Wright's most advanced portable roughness tester. Supplied with a Microsoft tablet to control measurements, view live data, and save reports. The dedicated measurement software has a choice of over 100 reportable parameters and automatically plots six waveform and analysis graphs for easy assessment of surfaces. Measurements and reports can be saved directly onto to the tablet or exported using a SD card or USB.
The MWT-1300 Profilometer is a powerful, portable tester for customisable surface form measurements. The tablet runs dedicated software to configure and initiate measurements, with live test data shown on-screen as it measures. Data is automatically processed and plotted to show the part’s surface profile, roughness, and waviness, with additional Abbott Curve, Fast Fourier Transform, and Amplitude Distribution graphs for advanced analysis. Suitable for reporting to GB, DIN, ISO, ASME, and JIS standards, with over 100 parameter options. Measurements can be saved on the tablet or conveniently exported as .csv files onto the supplied SD card or via USB.
| MWT-1300 | Profilometer with Microsoft Tablet | POA |
