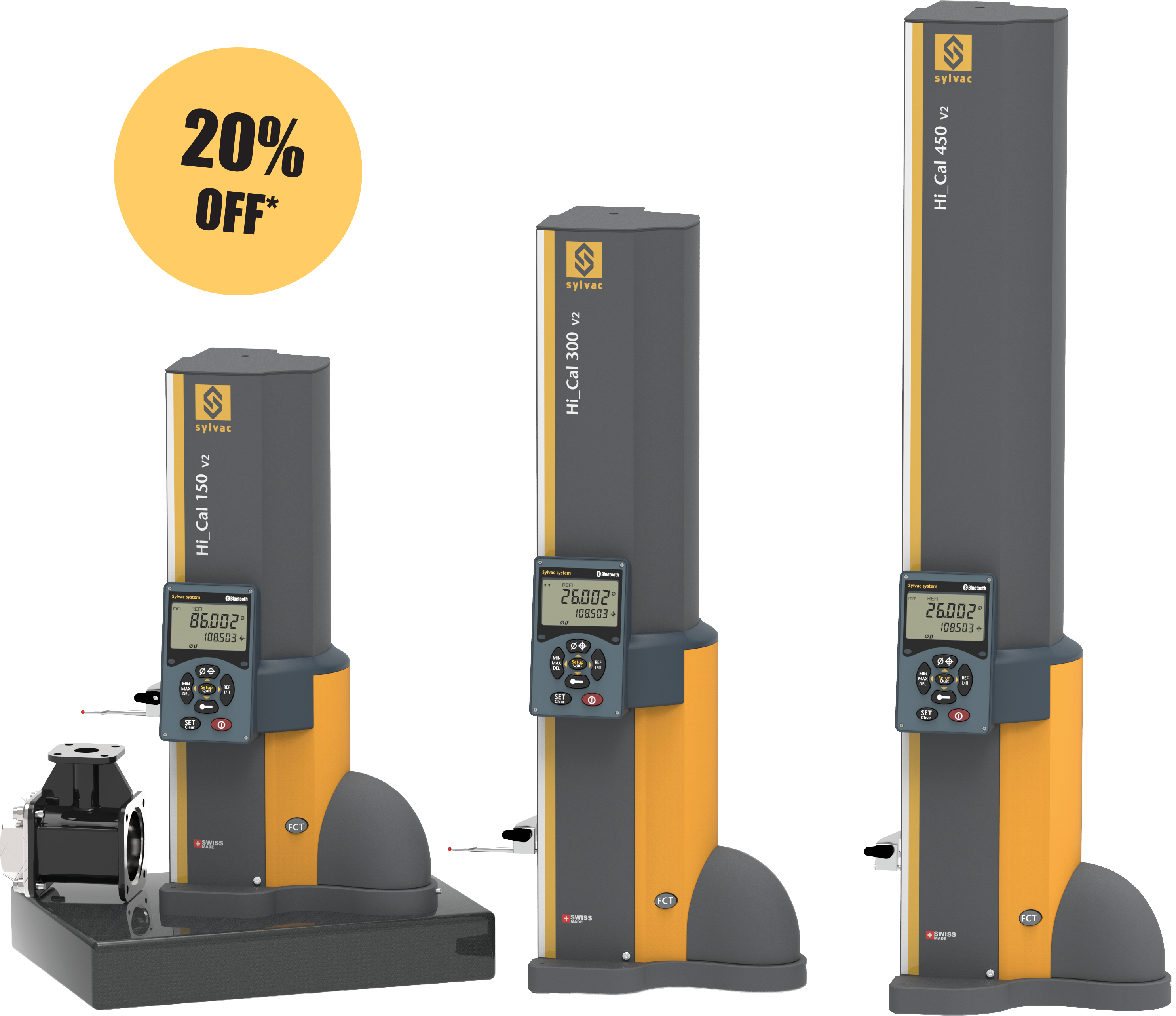

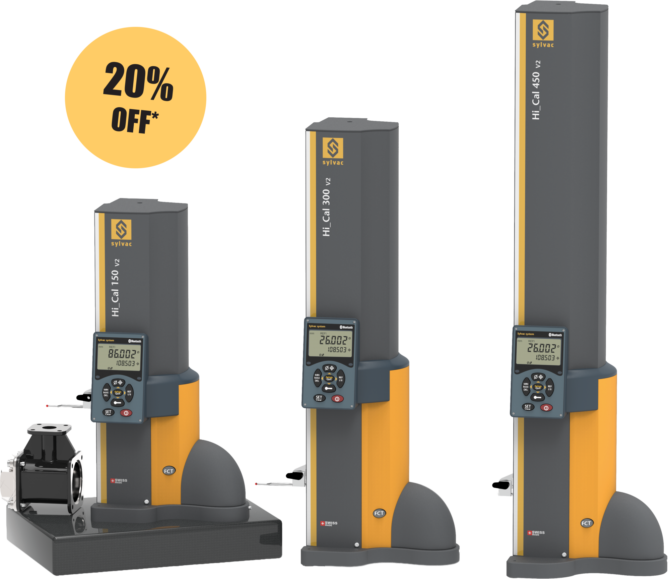

Sylvac Hi_Cal Digital Motorised Height Gauge

Back to Products

Product Description

The height gauge benefits from Sylvac's patented inductive measuring electronics and the latest motorised probing system, to give excellent repeatability and ease of use.

Features

Available in three models: 150mm, 300mm and 450mm
Motorised carriage with 2 progressive speed ranges
Light and compact with a small footprint
Simultaneous display of diameter and centerline
Measures internal and external diameter, centerline, height, thickness and depth
Extremely low measuring force
USB data output or RS232
Supplied with setting master and standard probe


30-830-0156	Bluetooth Enabled	150	6	0-155	6	2.5 + L / 175	2	379	3.9kg	0.01 / 0.001	£3,158.50
30-830-0306	Bluetooth Enabled	300	12	0-320	12	2.5 + L / 175	2	529	4.6kg	0.01 / 0.001	£3,446.00
30-830-0456	Bluetooth Enabled	450	18	0-470	19	2.5 + L / 175	2	679	6.8kg	0.01 / 0.001	£4,032.00

Product Image Downloads

Sylvac Hi_Cal Digital Motorised Height Gauge - Accessories

Sylvac Hi_Gage ONE Height Gauge - Accessories
