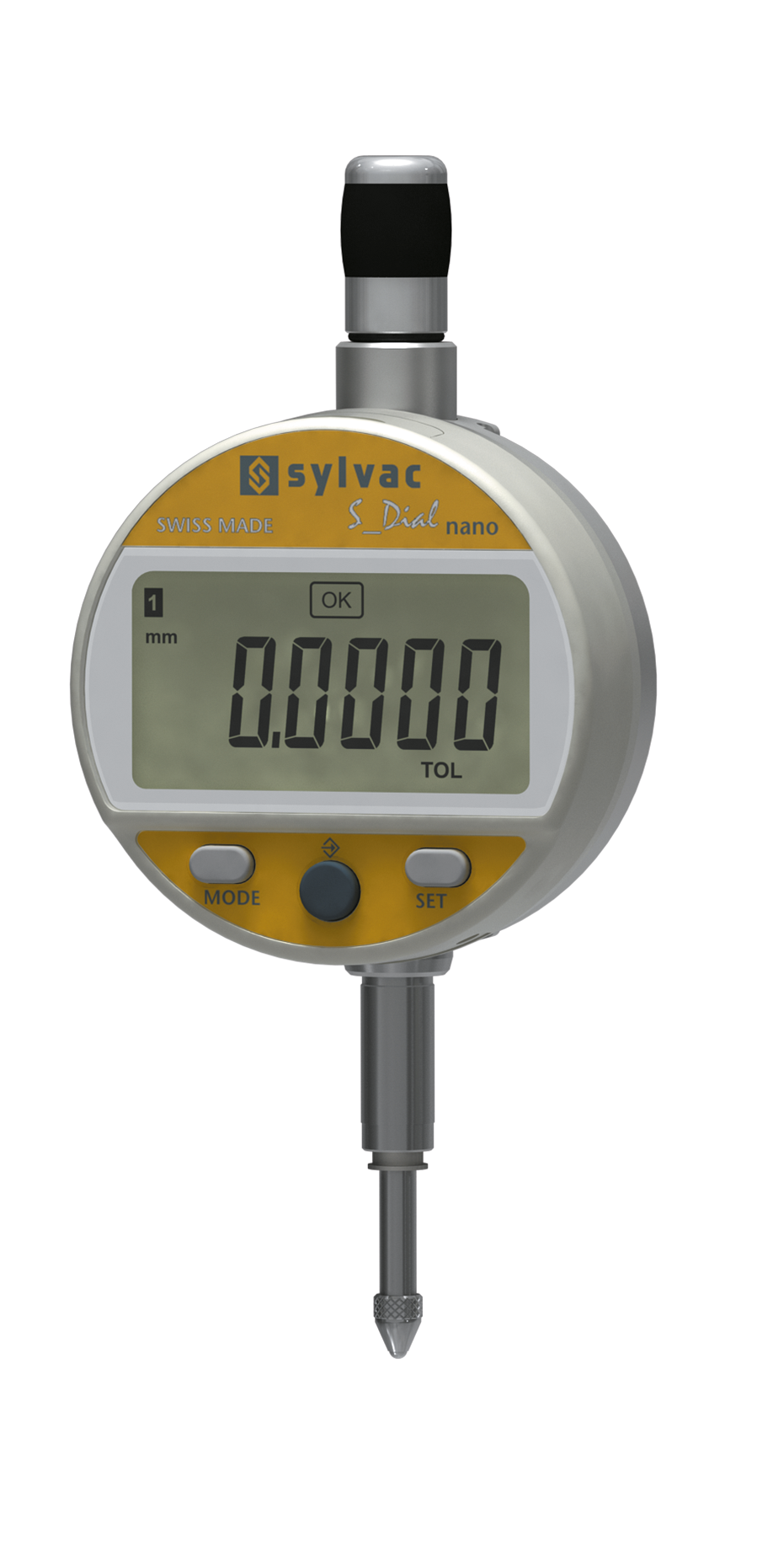

Sylvac S_Dial WORK Nano Digital Indicators
0,1 μm resolution / Range 12.5 & 25mm
*100% compatible with Bluetooth® Smart dongle 30-981-7100
Note: Lug Back is available
30-805-5306 |
30-805-5506 | 30-805-6306 | |
Maximum Error fe (µm) |
1.2µm | 1.6µm | 1.2µm |
| Repeatability (µm) | 0.3µm | 0.3µm | 0.3µm |
| Model type | Standard | Standard | Standard |
| S_Connect: Proximity/ Power |
USB/RS232 | USB/RS232 | USB/RS232/Bluetooth® Smart* |
| Programmable by PC | Yes | Yes | Yes |
| Standard functions (customised by PC) | mm/inch - ref I/II - preset (max 999.999) min/max/delta - tolerances - direction of measurement - multiplication factor - automatic or manual switch off - key lock | mm/inch - ref I/II - preset (max 999.999) min/max/delta - tolerances - direction of measurement - multiplication factor - automatic or manual switch off - key lock | mm/inch - ref I/II - preset (max 999.999) min/max/delta - tolerances - direction of measurement - multiplication factor - automatic or manual switch off - key lock |
| 30-805-5306 | Advanced Nano | 12.5 | 0.5 | 1.2 | 0.3 | £752.00 | |
| 30-805-5506 | Advanced Nano | 25 | 1.0 | 1.6 | 0.3 | £832.50 | |
| 30-805-6306 | Advanced Nano, Bluetooth | 12.5 | 0.5 | 1.2 | 0.3 | Bluetooth | £914.00 |
| 30-805-6506 | Advanced Nano, Bluetooth | 25 | 1.0 | 1.6 | 0.3 | Bluetooth | £980.50 |
