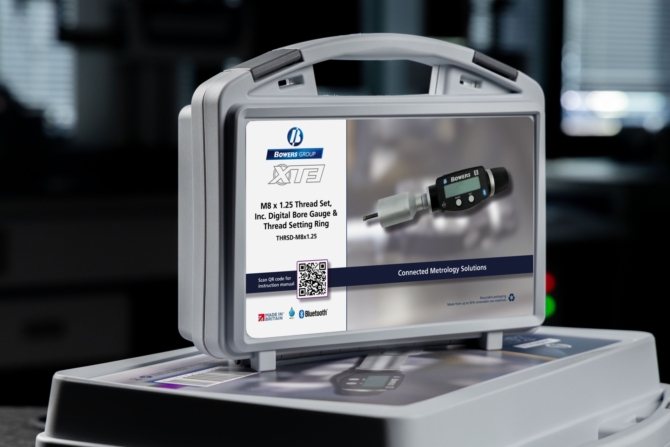

Bowers XT Digital Thread Gauging Sets are engineered to deliver fast, accurate, and repeatable internal thread diameter measurement in demanding manufacturing environments.
At the heart of each set is the XT3 digital micrometer controller, featuring an ergonomic design including a large, high-clarity LCD display to ensure readings are easy to view at a glance. IP67-rated electronics provide excellent protection against dust and coolant ingress.
Integrated Bluetooth and proximity output enable bi-directional communication, offering greater flexibility for data collection, transfer, and storage. The result is a robust, user-friendly thread gauging system that enhances productivity, accuracy, and confidence on the shop floor.
As the world’s leading bore gauge manufacturer, Bowers combines decades of metrology expertise with advanced digital technology to offer thread gauging sets, as well as standard and bespoke thread gauging solutions tailored to your application.
Modular & Adaptable
The Bowers XT range is highly adaptable. Once you have our Digital Bore Gauge, you can use multiple heads with ease. Fit them interchangeably to our Bluetooth XT range of digital micrometer controllers in seconds for fast, efficient use with incredibly accurate results! Other heads are also available for grooves, splines, slots, deep hole and many more applications.
Why choose Bowers thread gauging over hard gauging?
Compared to traditional hard gauging, Bowers thread gauging solutions provide faster measurement without the need to screw gauges in and out, significantly improving productivity. Machinists benefit from immediate, accurate size feedback during thread forming, reducing repeat cuts, minimising errors, and saving machining time. With fewer gauges required, calibration costs are also reduced, making Bowers thread gauging a smarter, more cost-effective solution for modern manufacturing.
| THRSD-M5x 0.8 | THRH-M5 x 0.8 | THRR-M5x 0.8 | XTDU2M-BT | £1,179.43 |
| THRSD-M6x 1 | THRH-M6 x 1 | THRR-M6x1 | XTDU2M-B | £1,182.69 |
| THRSD-M8x 1.25 | THRH-M8x1.25 | THRR-M8x1.25 | XTDU2M-BT | £1,194.21 |
| THRSD-M10x1 | THRH-M10x1 | THRR-M10x1 | XTDU6M-BT | £1,212.90 |
| THRSD-M10x1.25 | THRH-M10x1.25 | THRR-M10x1.25 | XTDU6M-BT | £1,210.00 |
| THRSD-M10x1.5 | THRH-M10x1.5 | THRR-M10x1.5 | XTDU6M-BT | £1,242.33 |
| THRSD-M12x1.00 | THRH-M12x1.0 | THRR-M12x1.00 | XTDU10M-BT | £1,217.55 |
| THRSD-M12x1.25 | THRH-M12x1.25 | THRR-M12x1.25 | XTDU10M-BT | £1,218.43 |
| THRSD-M12x1.5 | THRH-M12x1.5 | THRR-M12x1.5 | XTDU10M-BT | £1,214.10 |
| THRSD-M12x1.75 | THRH-M12x1.75 | THRR-M12x1.75 | XTDU10M-BT | £1,218.90 |
| THRSD-M14x1.5 | THRH-M14x1.5 | THRR-M14x1.5 | XTDU10M-BT | £1,235.74 |
| THRSD-M16x1 | THRH-M16x1 | THRR-M16x1 | XTDU10M-BT | £1,261.52 |
| THRSD-M16x1.5 | THRH-M16x1.5 | THRR-M16x1.5 | XTDU10M-BT | £1,261.55 |
| THRSD-M16x2 | THRH-M16x2 | THRR-M16x2 | XTDU10M-BT | £1,249.67 |
| THRSD-M18x1.25 | THRH-M18x1.25 | THRR-M18x1.25 | XTDU10M-BT | £1,310.62 |
| THRSD-M18x1.5 | THRH-M18x1.5 | THRR-M18x1.5 | XTDU10M-BT | £1,275.50 |
| THRSD-M20x1.0 | THRH-M20x1.0 | THRR-M20x1.0 | XTDU10M-BT | £1,289.21 |
| THRSD-M20x1.5 | THRH-M20x1.5 | THRR-M20x1.5 | XTDU10M-BT | £1,277.55 |
| THRSD-M20x2.5 | THRH-M20x2.5 | THRR-M20x2.5 | XTDU10M-BT | £1,296.29 |
| THRSD-M22x1.5 | THRH-M22x1.5 | THRR-M22x1.5 | XTDU20M-BT | £1,279.95 |
| THRSD-5/16- 24 | THRH-5/16- 24 | THRR-5/16- 24 | XTDU2I-BT | £1,289.19 |
| THRSD-1/4 - 20 | THRH-1/4 - 20 | THRR-1/4 - 20 | XTDU2I-BT | £1,266.76 |
| THRSD-3/4 - 16 | THRH-3/4 - 16 | THRR-3/4 - 16 | XTDU10I-BT | £1,308.10 |
| THRSD-9/16 - 18 | THRH-9/16 - 18 | THRR-9/16 - 18 | XTDU10I-BT | £1,257.10 |
| THRSD-7/16 - 20 | THRH-7/16 - 20 | THRR-7/16 - 20 | XTDU6I-BT | £1,247.60 |
| THRSD-5/8 -11 | THRH-5/8 - 11 | THRR-5/8 - 11 | XTDU10I-BT | £1,296.83 |
| THRSD-5/8 -18 | THRH-5/8 - 18 | THRR-5/8 - 18 | XTDU10I-BT | £1,277.62 |
| THRSD-1 - 12 | THRH-1 - 12 | THRH-1 - 12 | XTDU20I-BT | £1,280.38 |
